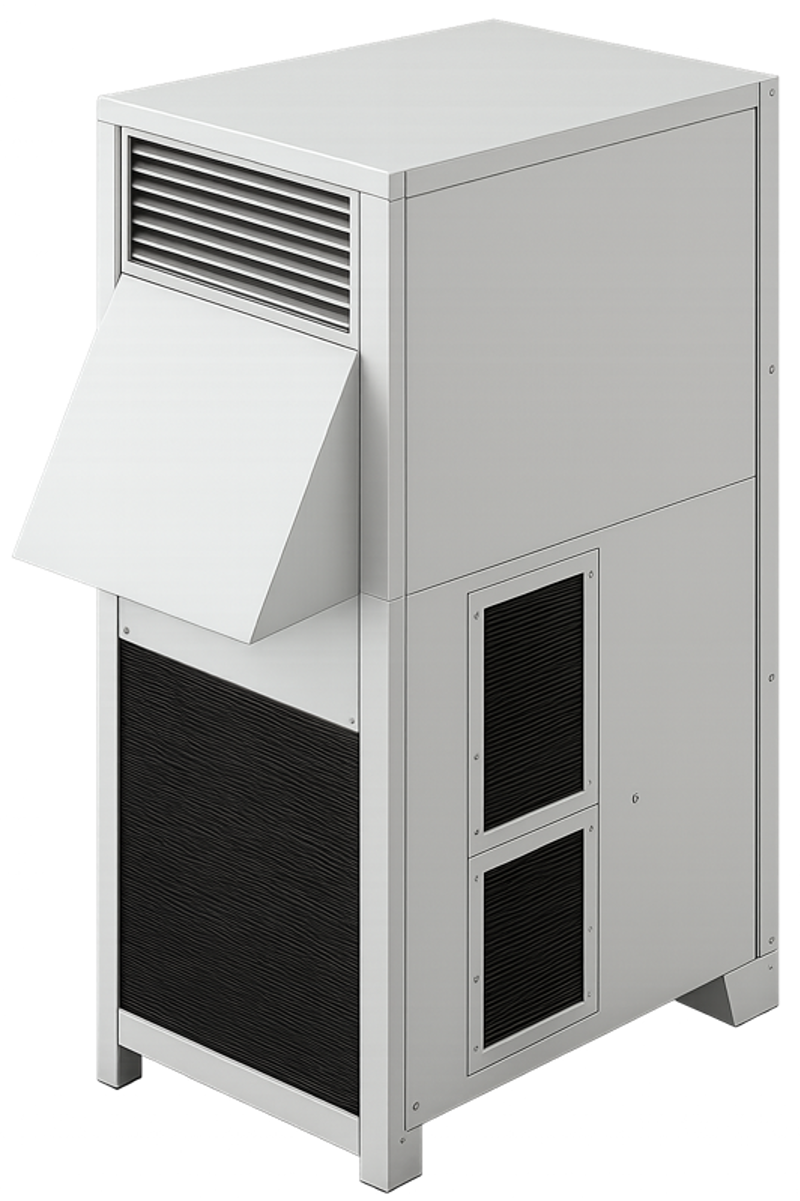

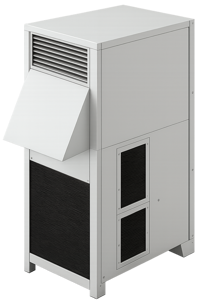

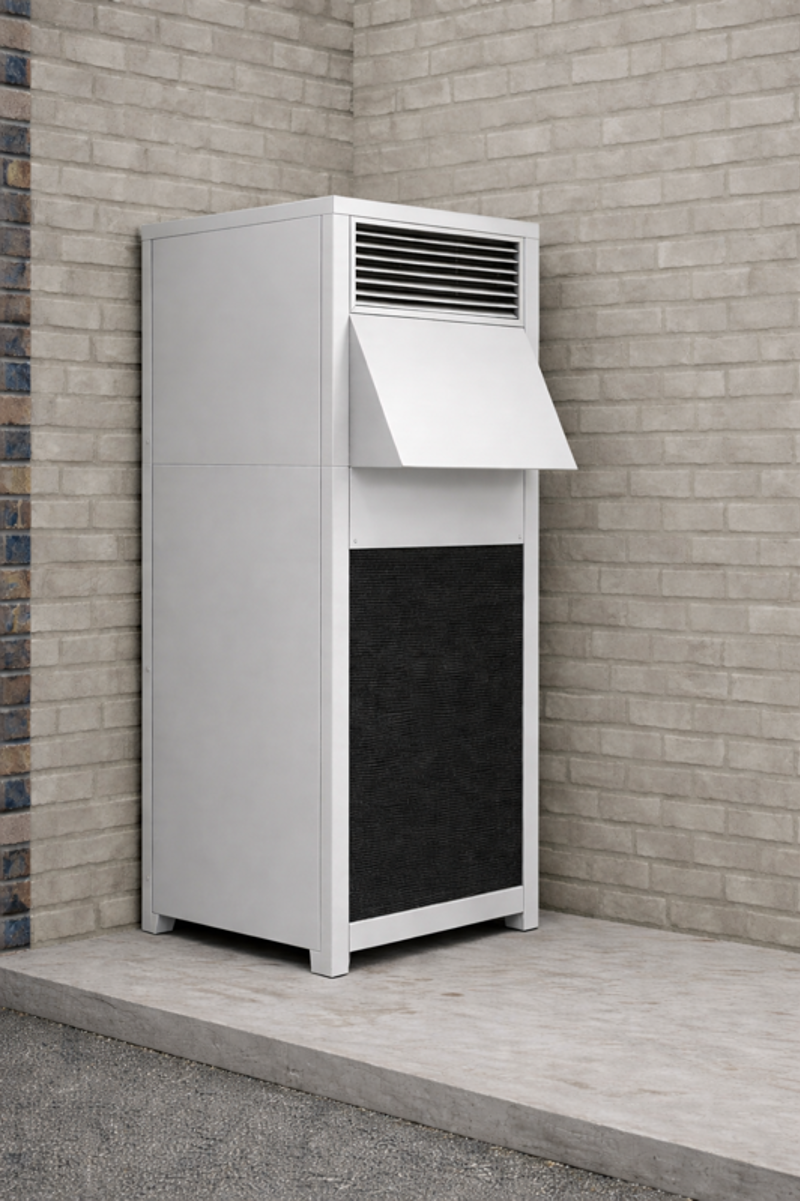

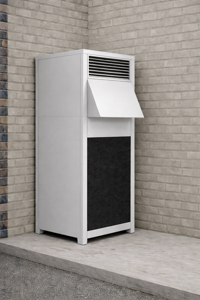

EC Air Outdoor 60SCW

Description

The SuperCooler serie is a compact plug & play hybrid cooler, based on optimized use of free-air and water Cooling based on a constructed with highest level of operational reliability, lowest impact on Global warming, and for outdoor temperatures up to 55ºC/ 131ºF. The hybrid system is extremely efficiency and easy to make maintain. Vital components placed inside to minimize the risk of vandalism and theft.

Reliability operation:

Redundant fans secure the operation even when it is very warm outside, or in case of breakdown or Grid Power failure. Free-Cooling supported by the UPS /battery system, secure operation also without the Main power. Every Part or the complete unit it´s easily replaced, by all kinds of technical staff.

Installation:

The systems is delivered as plug & play with quick coupling systems to secure easy installation or replacement.

Optional:

Up to 12 systems can be connected as leader/follower
Possibility for cloud connection. Read more under our Cloud page

Specification:

Sensible Cooling Capacity: 0,5-6 kW/20500BTU
Type of Outdoor Solution: EC AIR OUTDOOR 60 SCW
Compressor control: Variabel
Fan motor control: Variabel
Noise level at normal speed: 49 dB(A)
COP/EER: 7,2 ved udetemperatur +20ºC
COP/EER: 2,4 ved udetemperatur +50ºC
Supply voltage fan/comp: 48VDC / 240 VAC
Power consumption (nominel): 15-2300w
Full load Amp. Fan/comp: 3/13 Amp.
GWP (Global Warming Potential) : 1
PFAS: 0
Refrigerant: 450g R290
Weight: 95 kg. (204 lbs)
Dimensions: H 1500 x W602,5 x D431 mm /H 59,1 x W23,7 x D17,0 inch
Materiale: Aluzink
