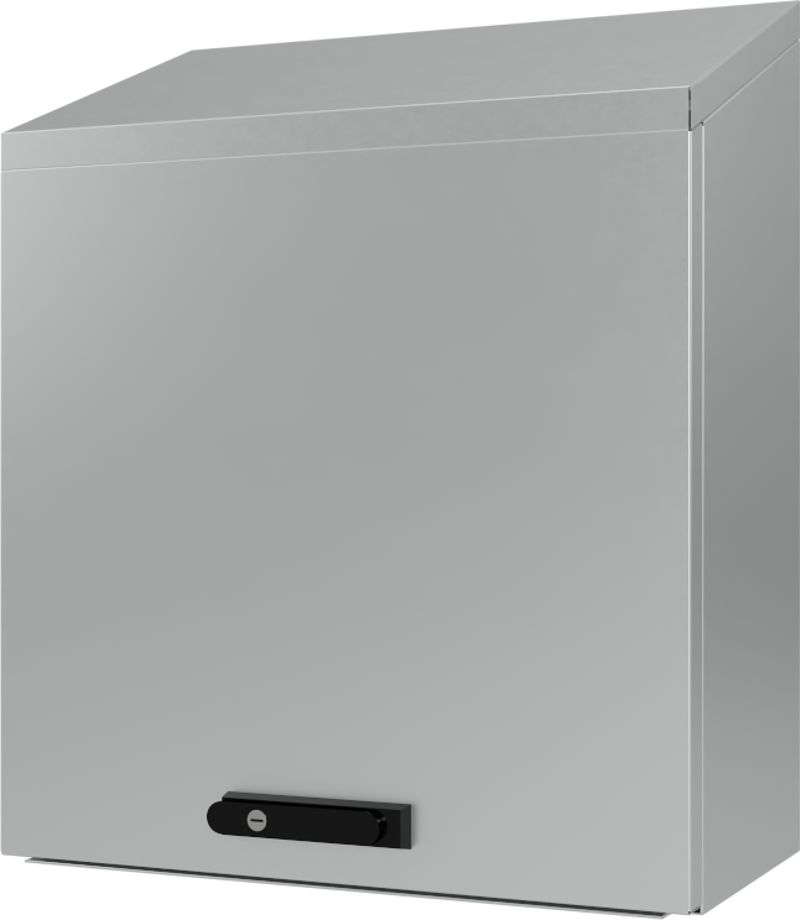

EC Air Compact OB
Description
The EC Air Compact OB displacement unit is designed to ensure optimal operation and the lowest possible level of power consumption, under the conditions found in unmanned technology rooms. The unit ensures a low noise level, which makes it suitable for installation in populated areas with no negative feedback.
Installed as stand-alone or in corporation with an existing air conditioner, the EC Air Compact OB will ensure power savings up to 97% (depending on local climate conditions) and the equivalent CO₂ emission reduction as well as extending the lifetime of existing cooling units (Total Capex savings on cooling systems/air conditions).
Specifications
- Casing material 2 mm galvanized steel plate
- Noise level at normal speed 42 db(a)
- Duo filter with long life
- Ventilation up to 4 kW pr. unit
- Maximum power consumption 48 VDC/3A
- Ambient temperature -25°C/+60°C (-13°F / 140°F)
- Motor power 10-160 W
- Maximum airflow 1345 m³/h (792 cfm)
- Weight 45 kg (99 lbs)
- Dimensions W x H x D = 600 x 948 x 338 mm (23,6 x 37,3 x 13,3'')
- Leader/follower up to 16 units
- Installation outdoor
