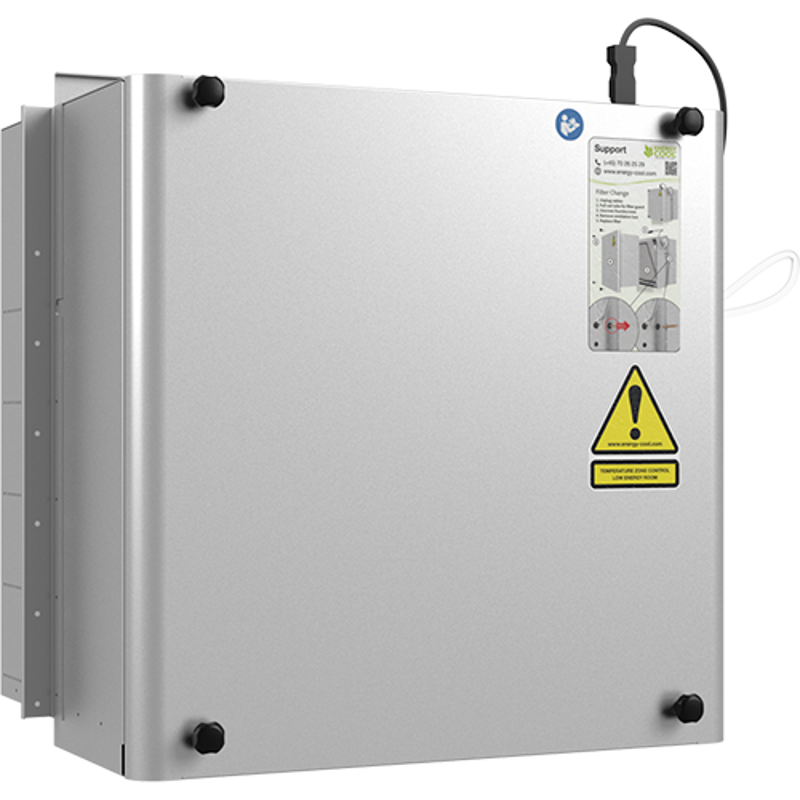

EC Air Compact DF

Description

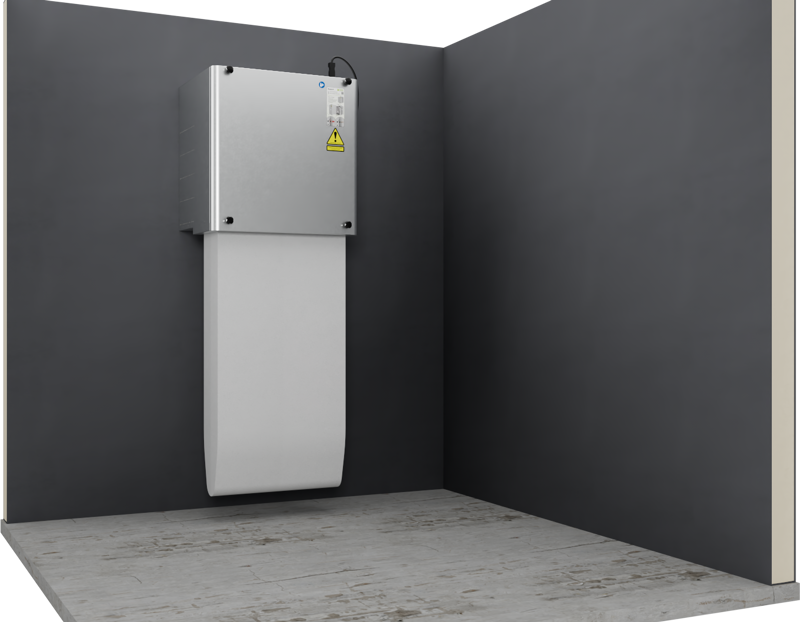

The EC Air Compact DF is expanded in size compaired to EC Air Compact TT and adapted in order to deliver a larger and more efficient flow of cold air. By installing a channel below the unit, it can act as a ”down flow unit”. It is possible to place PCM-elements into the channel. This feature makes the EC Air Compact DF-L a flexible solution that can either work with a displacement bag or by mounting PCM-elements to the EC Air Compact DF-L device.

Controller

EC Air Compact DF can be equipped with an advanced, reliable, electronic controller with user-friendly display. This controller also gives the option for Web- or Modbus card and through this allows remote control and data analysis. This controller is built in a seperate controller box. Alternatively, the EC Air Compact DF can be equipped with a small simple controller.

Specifications

  • Casing material 1 mm galvanized steel plate
  • Noise level at normal speed* 42 db(a) (see data sheet for sound)
  • Duo filter w. long life - displacement bag
  • Capacity ventilation up to 6 kW
  • Maximum power consumption 48 VDC/3A
  • Ambient temperature -10°C/+60°C
  • Power consumption, standby 4 W
  • Voltage 48 VDC (optional other power inputs can be supplied)
  • Motor power 10-110 W (140 W) (factory setting)
  • Maximum airflow 1728 m³/h (80% fanspeed)
  • Weight 35 kg
  • Dimensions W x H x D = 600 x 605 x 440 mm
  • Control options small or large controller

* 1 m outside with 100% fanspeed



PRODUCT PRODUCTCODE SMALL CONTROLLER LARGE CONTROLLER PEAK(PCM) RE-CIRCULATION
EC Air Compact DF-L 315003
EC Air Compact DF-L 315001 ⚙

✔ = yes     ✘ = no      ⚙ = option
