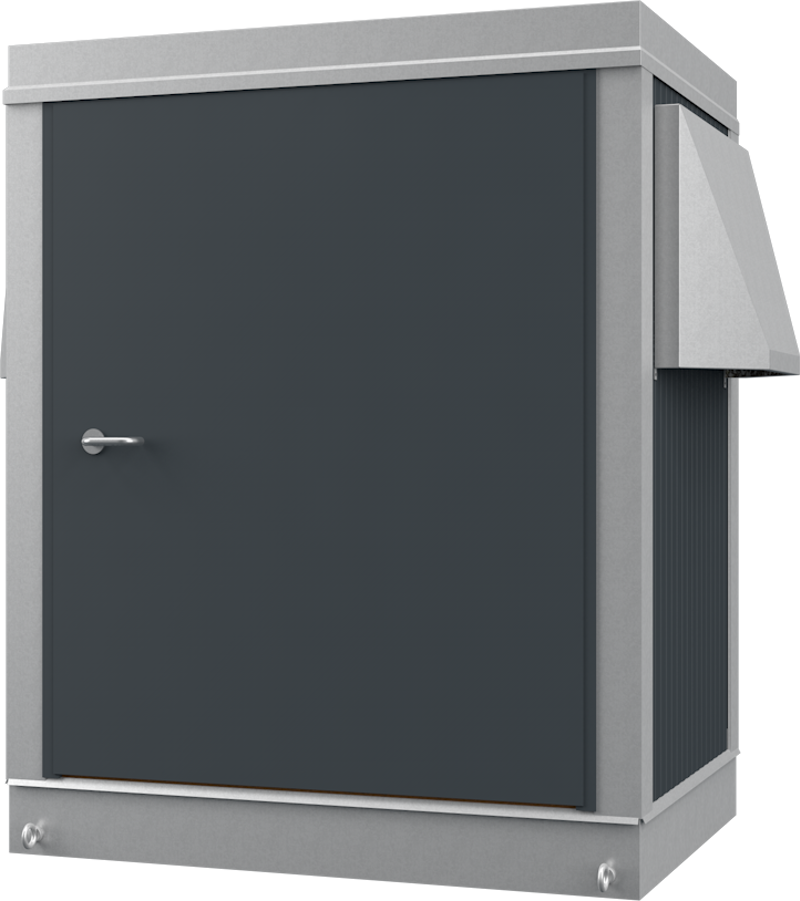

EC Outdoor Flex

EC Outdoor Flex

Description

EC Outdoor Flex is made to meet demands for high quality, low maintenance, and low energy consumption. The integrated displacement cooling system is designed specifically to ensure optimal operation/maintenance/temperature control with great OPEX savings.

The EC Outdoor Flex is highly insulated and extremely low energy consuming with great power savings and low CO₂ emission, compared to sites cooled by airconditioner. The unit ensures an extremely low noise level, which makes it suitable for installation in populated areas with no negative feedback.

Turnkey delivered these units provide simple and fast installation while minimizing the downtime and cost. Customer equipment can be included in turnkey delivery (UPS, inverter batteries, etc).

Walls and doors are fabricated according to the European Fire Class EI60 and can be equipped with optional intumescent fire dampers in the same fire class.

The unit can be adapted based on customer needs/ requirements

Specifications

  • Cabinet material Stone wool EI-60
  • Insulation 100 mm (3,9'') stone wool
  • Noise level at normal speed 42 dB(a)
  • Displacement cooling (no refrigerant) cap. 4 kW
  • Power consumption 10 - 160 W
  • Voltage 48 VDC / 3A
  • Weight 350 kg (772 lbs)
  • Dimensions (HxWxD) 1780x1900x1006 mm (70,1 x 74,8 x 39,6'')

Purchasable

  • 19" rack
  • LSA box
  • Battery Shelf
  • Fire Grates
  • Cooling system
  • Light
  • Damper
  • Document holder
  • Alternative colors
  • Caps
  • Locking systems
  • Monitoring via Cloud
  • Roxtec
  • Customization
